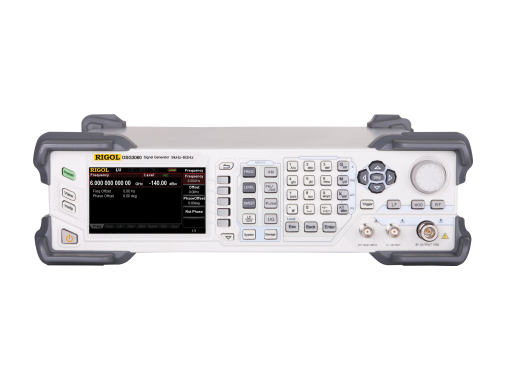

DSG3000 SERIES | RF SIGNAL GENERATOR

Starting Price: $12,999

Note: Prices mentioned are only for base models. Final price is dervived based on bandwidth, number of channels and options chosen.

• Highest frequency: 3GHz/6GHz
• Amplitude accuracy: <0.5dB (typical)
• Output amplitude range: -130 dBm to +13 dBm
• High signal purity, phase noise: <-110dBc/Hz@20kHz (typical)
• Standard 0.5ppm internal clock; 5ppb high stable clock for option
• Standard AM/FM/ΦM analog modulation
• Standard pulse modulation; on/off ratio up to 80dB; pulse train generator for option
• I/Q modulation and I/Q baseband output
• All modulations support internal and external modulation modes
• Standard 2U height design to save rack space; rack mount kit is available
• Standard USB/LAN/GPIB remote control interfaces; support SCPI command set
• Wear-free electronic attenuator design
• Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test system with power meter control

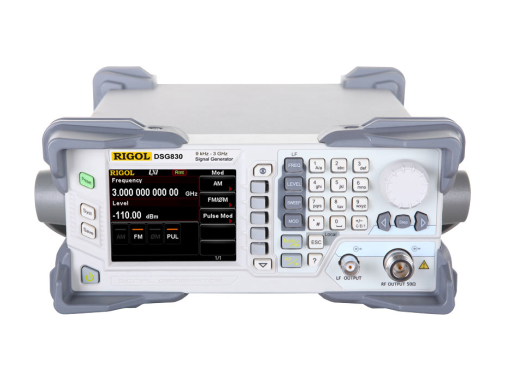

DSG800 SERIES | RF SIGNAL GENERATOR

Starting Price: $2,099

Note: Prices mentioned are only for base models. Final price is dervived based on bandwidth, number of channels and options chosen.

• Up to -112 dBc/Hz (typical) phase noise
• Up to +20 dBm (typical) maximum output power
• Higher level of amplitude accuracy, up to 0.5 dB (typical)
• Superb signal stability
• Flexible frequency and amplitude sweep functions
• Complete AM/FM/ØM analog modulation functions
• Standard LF output function
• Powerful pulse modulation function
• Open vector modulation function
• System flatness calibration function
• Simple and easy to operate
• Use electronic attenuator to avoid wearing
• Specially designed protection functions
• Digital ALC circuit
• Simple structure
• Occupy the least workbench space
• Occupy less rack space
• Light weight; the handle offers comfortable grip
