RFシグナル・ジェネレータ
DSG3000Bシリーズの周波数範囲は9kHz〜6.5 GHz / 13.6GHzです。AM / FM /ØMアナログ変調、および最大6.5GHzの IQ変調とIQベースバンド出力を提供します。 DSG3000Bシリーズは無線通信、レーダー、IOTの分野に適した高性能アナログ/ベクトルRFシグナル・ジェネレータです。
Signal Output Function

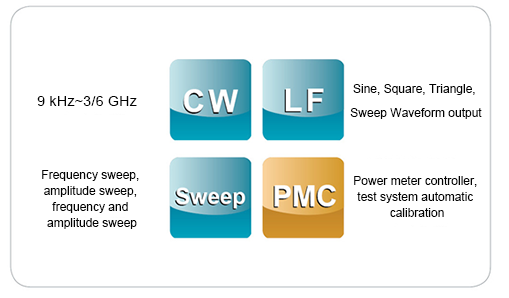

DSG3000 output signal frequency up to 12GHz, can produce continuous wave, various forms of low frequency signals and a variety of parameters can be set frequency / amplitude scanning signal, the output signal is accurate and reliable, and provides automatic calibration through the power meter
High Power Signal Generation Capability

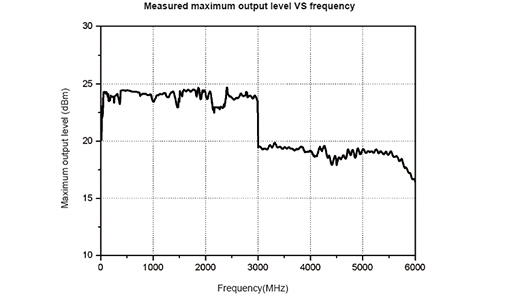

The maximum output amplitude is +13dBm (nominal value), which can be set to +25dBm, which meets the non-linearity test of the amplifier.
Pulse Modulation, Providing Up to 80dB Switching Ratio

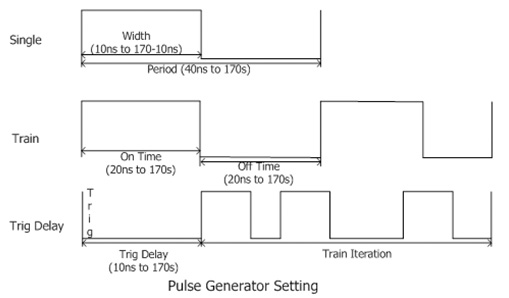

Standard pulse modulation, pulse on/off ratio up to 80dB, optional custom pulse sequence, can generate single pulse, double pulse and arbitrary pulse sequence, with analog modulation external modulation input function, can easily realize ASK, FSK, Simple digitally modulated output such as PSK
Internal and External IQ Modulation

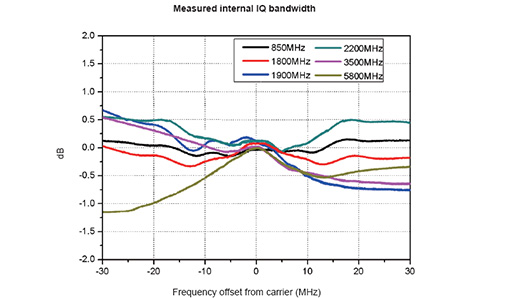

Users can choose both internal and external IQ modulation modes, internal I+Q modulation bandwidth up to 60MHz, EVM <0.7%, external I+Q modulation bandwidth 240MHz, EVM <0.8% (typical), and Ultra IQ Station for convenience Generated vector signal waveform
Reliable Output Amplitude Stability

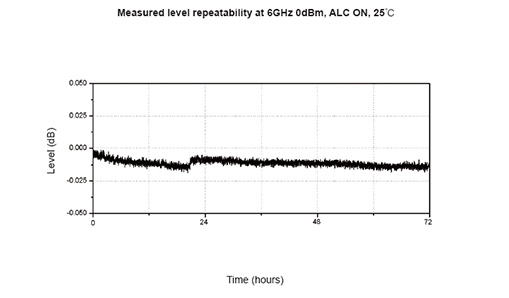

Excellent repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB
Multiple Modulation Methods
Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources
Phase Noise Metric

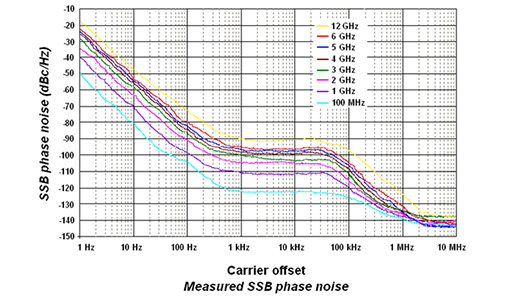

High signal purity, phase noise typical value <-110dBc/Hz@20kHz, similar products in the United States; better high-stability clock reference can get better near-phase noise index
Small Signal Output Capability

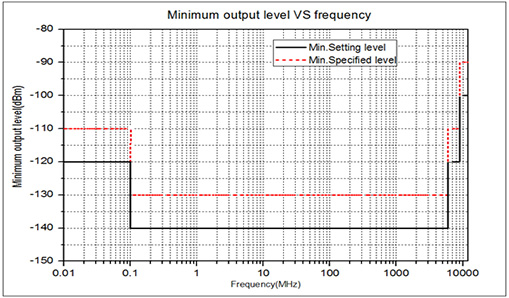

Minimum output amplitude of -130dBm (can be set to -140dBm) for demanding receiver sensitivity testing
-
